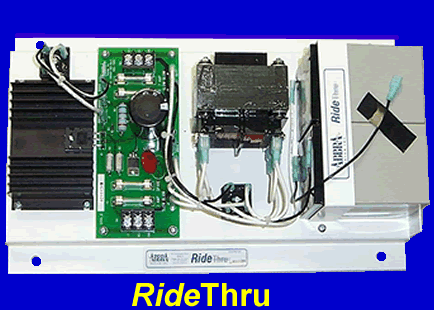

The RideThru is a 24VDC output, 130VA un-interruptible power supply (UPS) that is available in two different versions for 115VAC, 220VAC. It will deliver 24VDC power for up to 20 minutes at five (5) Amps after power outage. Even if the batteries fail, it will still supply power (Ride Thru) for 50 milliseconds.

The RideThru is designed to hold up industrial control equipment during a power outage, or while backup generator systems transfer the power system's source to/from the Utility supply.

Key Benefits:

·     Instantaneous switch over

·     One all inclusive unit (battery, charger, power supply)

·     Easy maintenance

Specification:

·     AC Input.................(115 or 220) VAC+/- 10%, 175 VA

·     DC Output...................24 VDC +/- 10%

·     Output Current............5 A

·     Battery .......................YUASA, NP4-12FR, 12, 4.0Ah

·     Mounting ....................Vertical

·     Dimensions.................5.075"x9"x15"



Warranty Information:

ABBRA Controls provides one-year warrantee, and parts replacement (excluding batteries). The battery manufacturer carries the battery warranty.

Maintenance:

Check batteries once a year.
